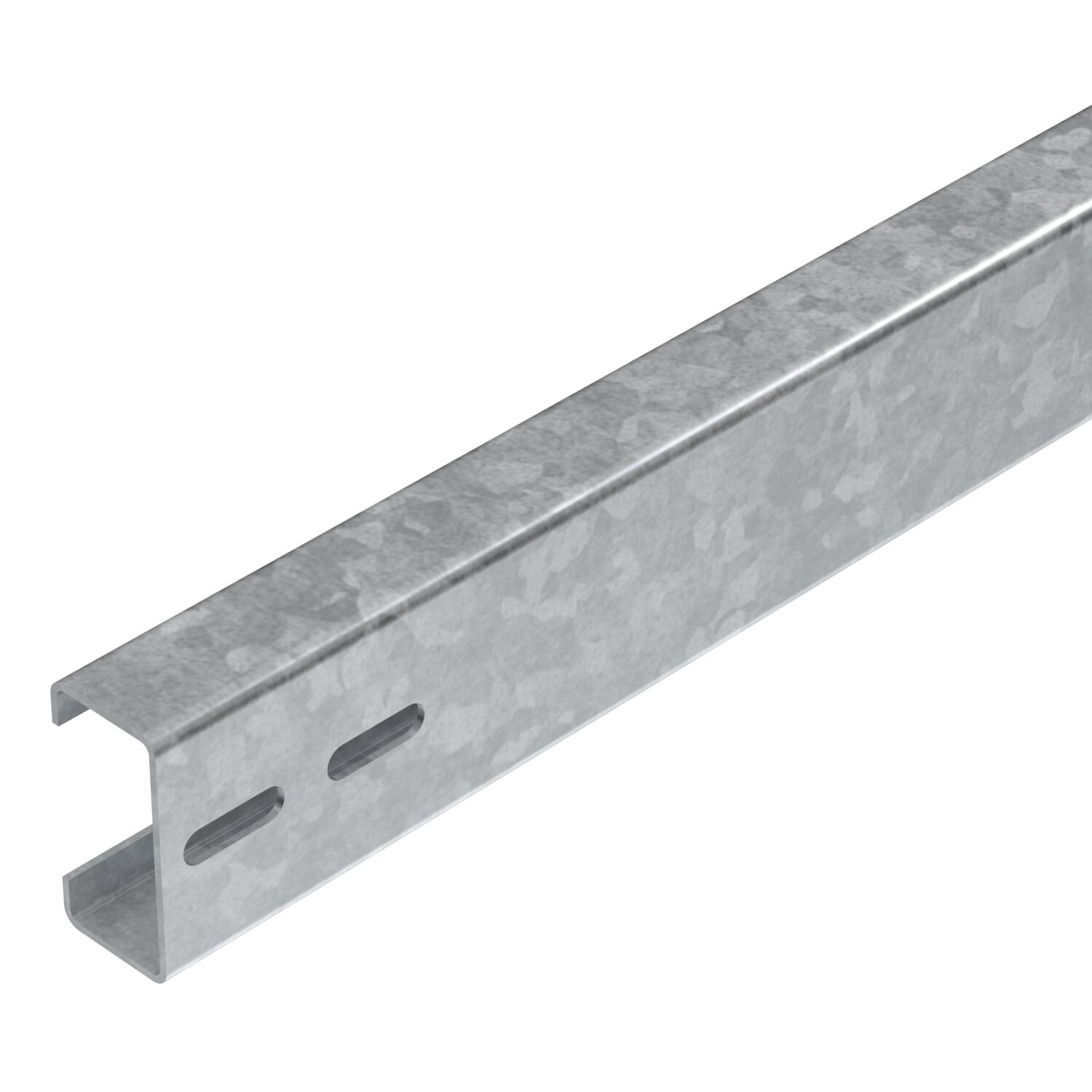

Support profile for PV module mounting, free-standing system
Art.nr. 5900540 | EAN 4012197489595
- Produkt beskrivelse
-
Produkt beskrivelseSupport profile to mount photovoltaic modules on free-standing systems. Mounting of support profile on pre-mounted supports with KV FT cross-connectors. Mounting of the PV modules on the support profile with end and/or connection clamps of type KLE and/or KLZ. Connection of multiple support profiles with LV FT straight connectors and KV FT cross-connectors, screw-on.
- Tekniske data
-
Teknisk data

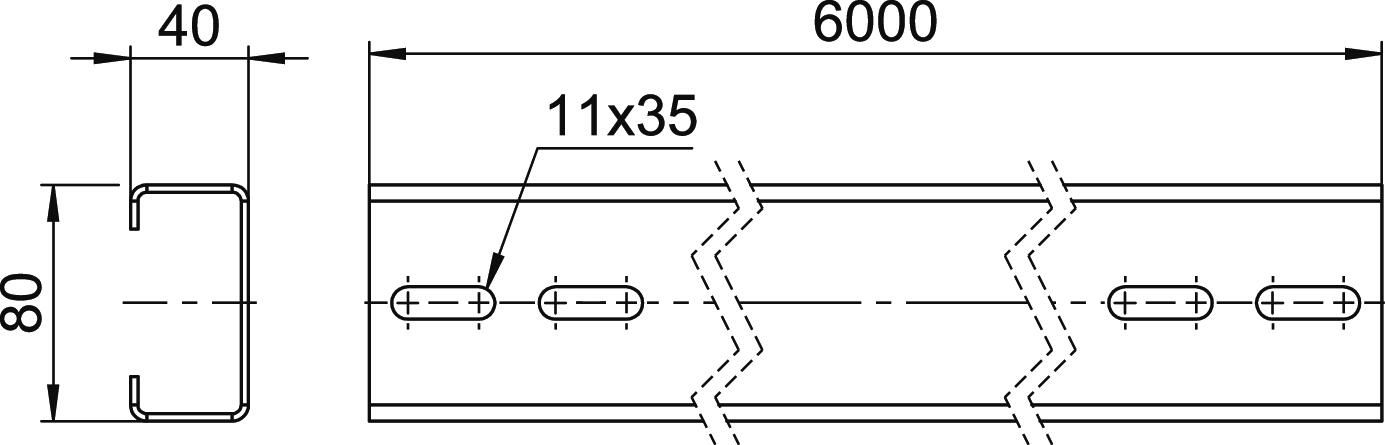

Dimension 40x80x6000 Kabelkanal ekstraudstyr Nej Kabelkanal integreret Nej Materiale Stål Modstandsmoment Wx 10600 mm³ Modstandsmoment Wy 5200 mm³ Overflade Varmgalvaniseret Dimensioner
Bredde 40 mm Højde 80 mm Længde 6000 mm - Alle typer
- Downloads
-
REACH Overensstemmelseserklæring TPU 6000 FT / 5900540 , 0.12MB , pdfRoHS Overensstemmelseserklæring TPU 6000 FT / 5900540 , 0.13MB , pdfTil dette produkt er ingen udbudstekster til rådighed
