Hanger bolt set for PV module mounting, corrugated roof
Art.nr. 5901820 | EAN 4012197459789
- Produkt beskrivelse
-

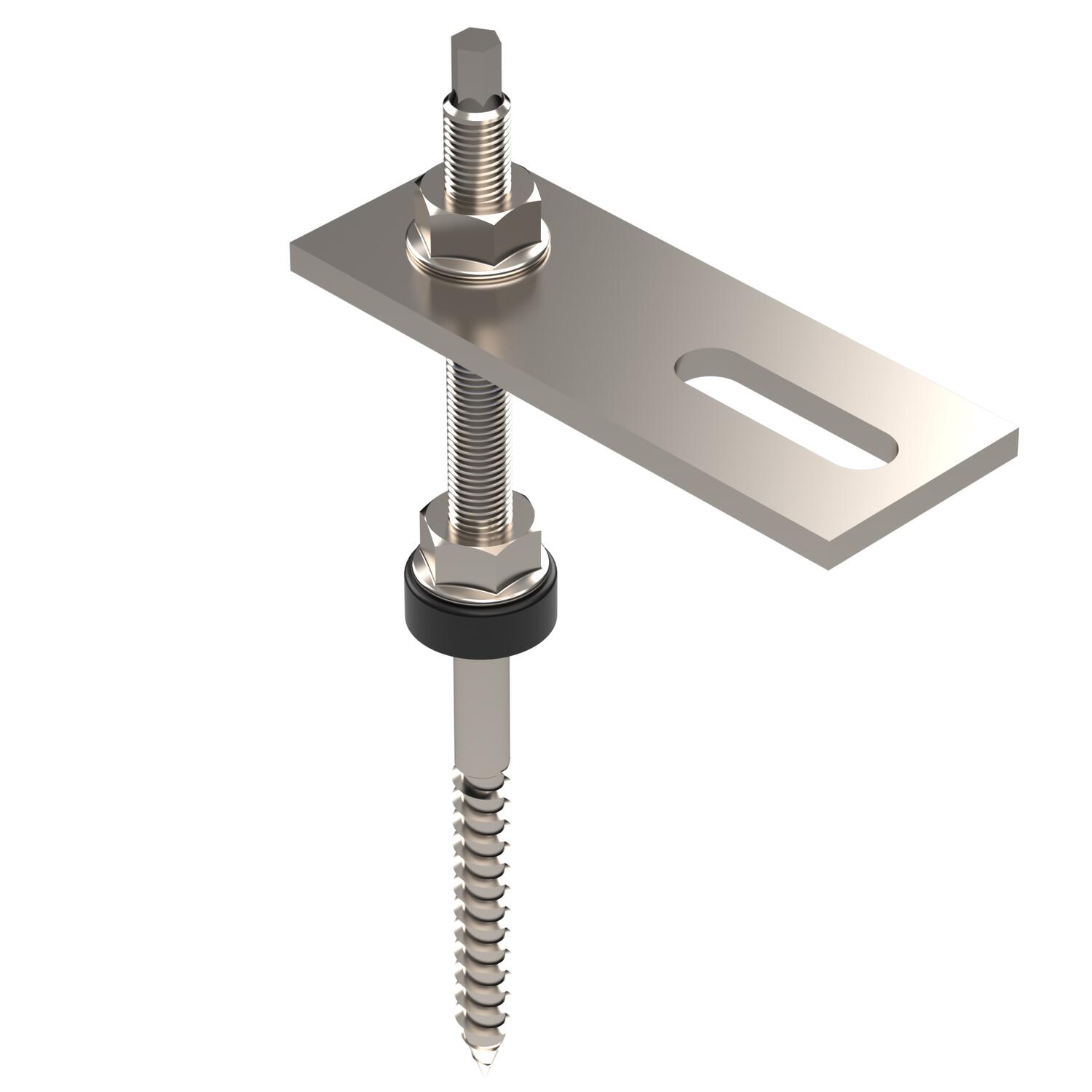

Produkt beskrivelseHanger bolt set to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for fastening in the wooden substructure of corrugated roofs made out of plastic, tin or fibre cement. Set consists of hanger bolt with pre-mounted EPDM seal, adapter plate for the support profile and additional nuts for the optional height adjustment. Fastening of the support profile with screw with slot nut, type SKS HM (please order separately).
-
- Tekniske data
-
CO2-aftryk (Product Carbon Footprint)

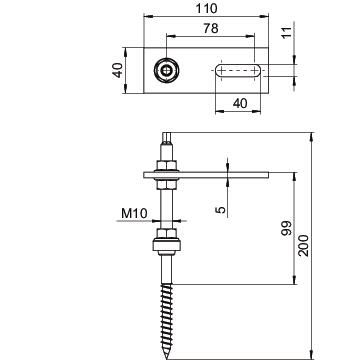

CO2 fodaftryk (GWP) fra vugge til port 0,0083 kg CO2e / 1 Styk Diameter 10 mm Dimension 200x40x27 Dobbeltgænget Ja Farve specialstål Gevind metrisk 10 Gevindtype Metrisk Hærdet Ja Længde 200 mm Maks. Tykkelse tagopbygning 70 mm Mål G 64 mm Mål L1 110 mm Materiale Rustfrit stål 1.4301 Skaftdiameter 10 mm Skruesystem sekskant (heksagonal) Skruesystem Udvendig sekskant Topform sekskant (heksagonal) - Alle typer
- Downloads
-
Monteringsvejledning PV mounting systems Magic PV Pitch on trapezoidal roofs , 2.45MB , pdfTil dette produkt er ingen udbudstekster til rådighed
