Hanger bolt set for PV module mounting, corrugated roof
Art.nr. 5901826 | EAN 4012197459802
- Produkt beskrivelse
-

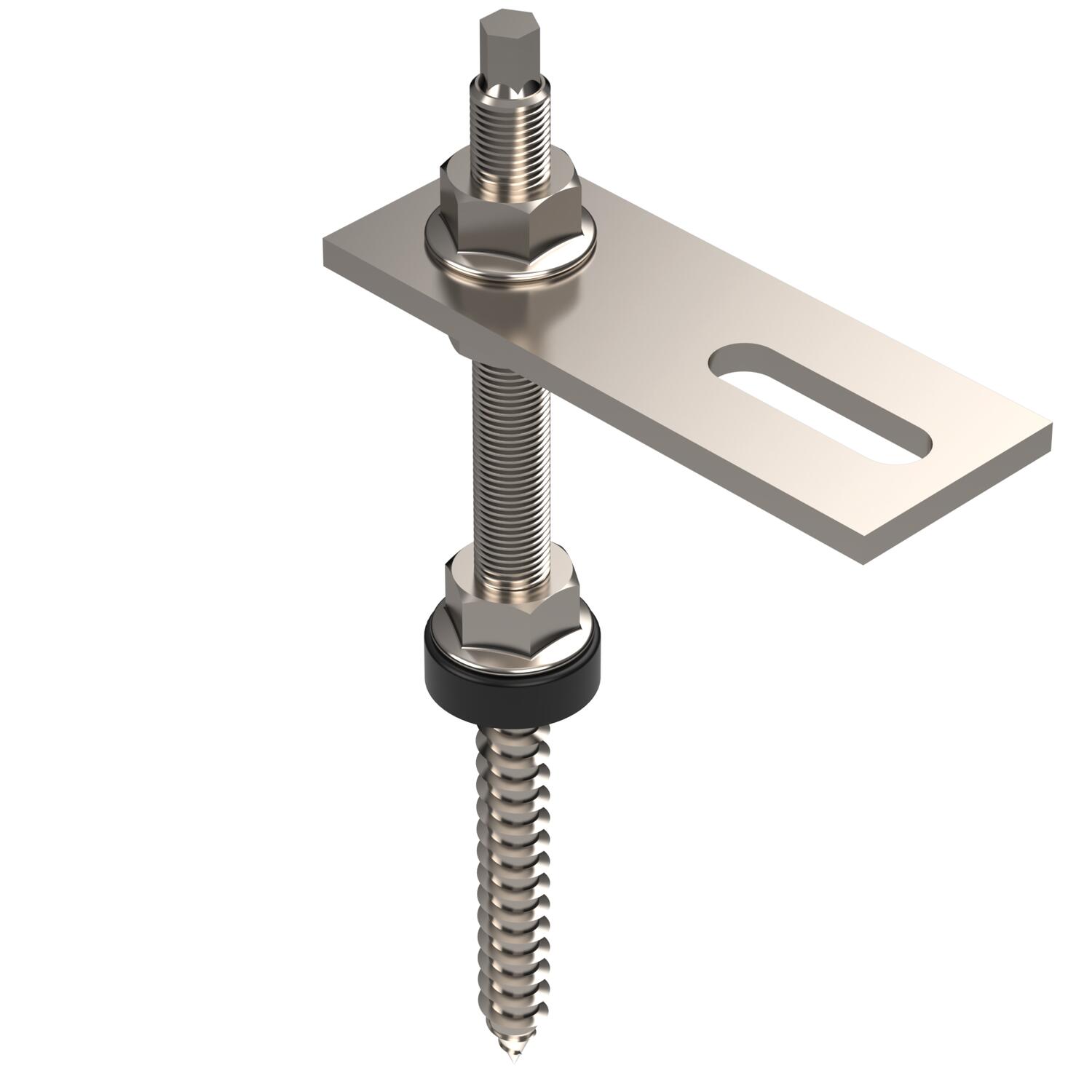

Produkt beskrivelseHanger bolt set to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for fastening in the wooden substructure of corrugated roofs made out of plastic, tin or fibre cement. Set consists of hanger bolt with pre-mounted EPDM seal, adapter plate for the support profile and additional nuts for the optional height adjustment. Fastening of the support profile with screw with slot nut, type SKS HM (please order separately).
-
- Tekniske data
-
CO2-aftryk (Product Carbon Footprint)

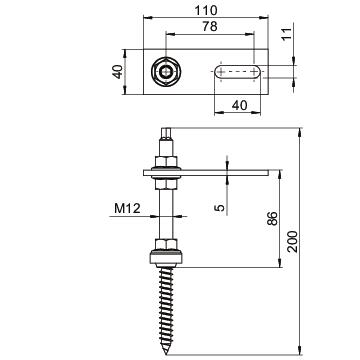

CO2 fodaftryk (GWP) fra vugge til port 0,0083 kg CO2e / 1 Styk Diameter 12 mm Dimension 200x40x30 Dobbeltgænget Ja Farve specialstål Gevind metrisk 12 Gevindtype Metrisk Hærdet Ja Længde 200 mm Maks. Tykkelse tagopbygning 60 mm Mål G 64 mm Mål L1 100 mm Materiale Rustfrit stål 1.4301 Skaftdiameter 12 mm Skruesystem sekskant (heksagonal) Skruesystem Udvendig sekskant Topform sekskant (heksagonal) - Alle typer
- Downloads
-
Monteringsvejledning PV mounting systems Magic PV Pitch on trapezoidal roofs , 2.45MB , pdfTil dette produkt er ingen udbudstekster til rådighed
